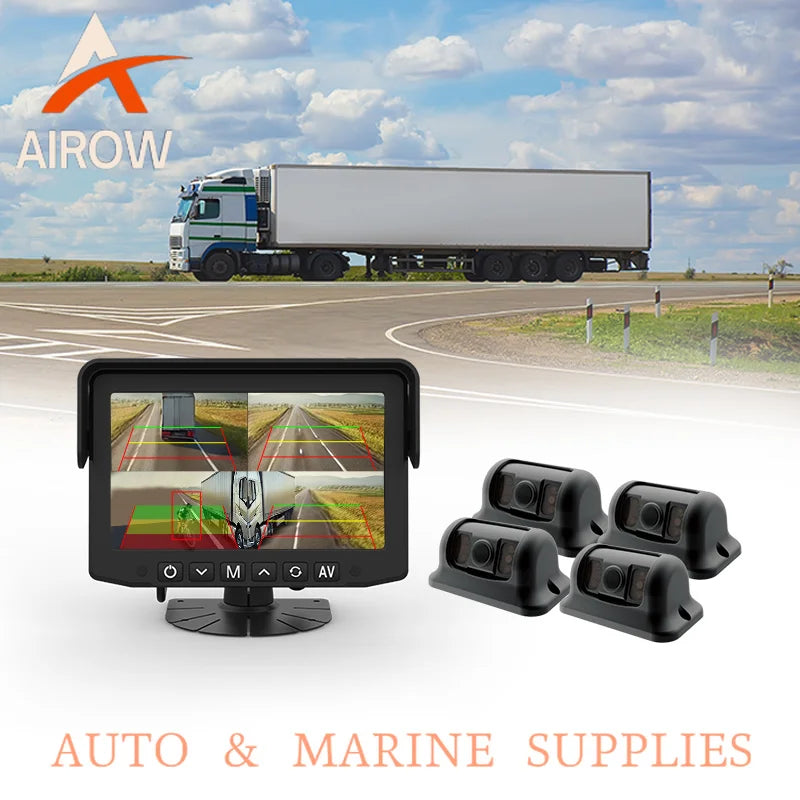

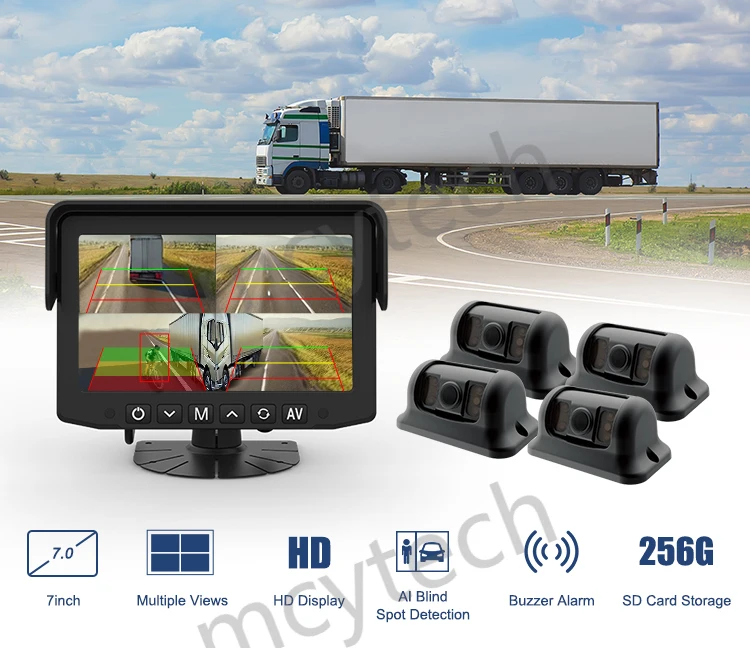

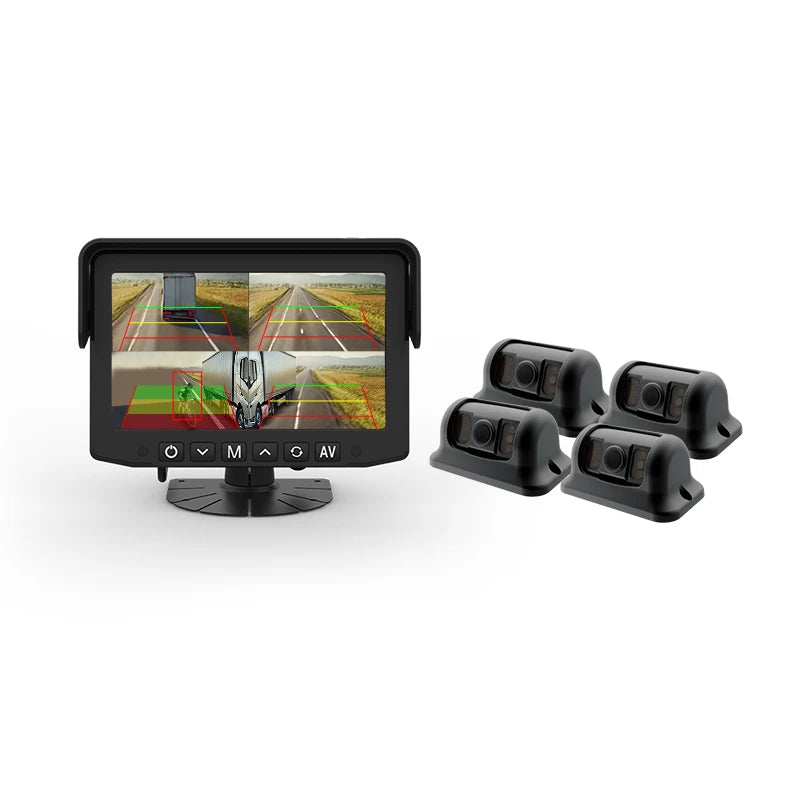

Airow auto 7inch Monitor HD Reverse Backup Camera System IP69K Waterproof 4 Channel Camera for Truck Bus RV Driver Assistance
Red
$752,99
Precio de oferta
$752,99
Precio habitual
Ir directamente a la información del producto
Airow auto 7inch Monitor HD Reverse Backup Camera System IP69K Waterproof 4 Channel Camera for Truck Bus RV Driver Assistance
$752,99
Precio de oferta
$752,99
Precio habitual
Products Description
【7Inch TFT LCD Screen】 1024*600 high resolution, 16:9 widescreen display, 4 channel quad split display.

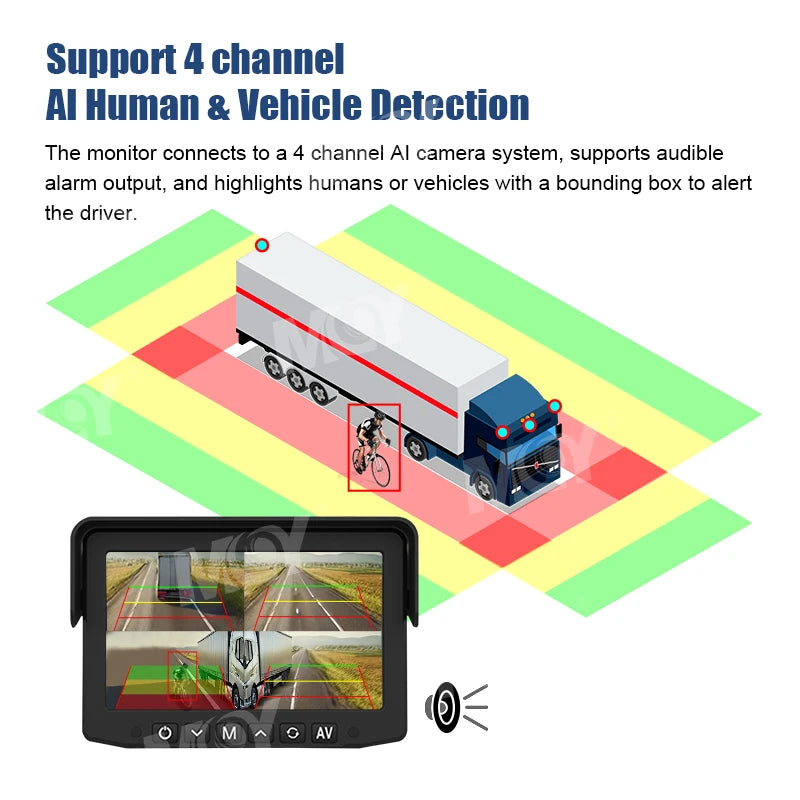

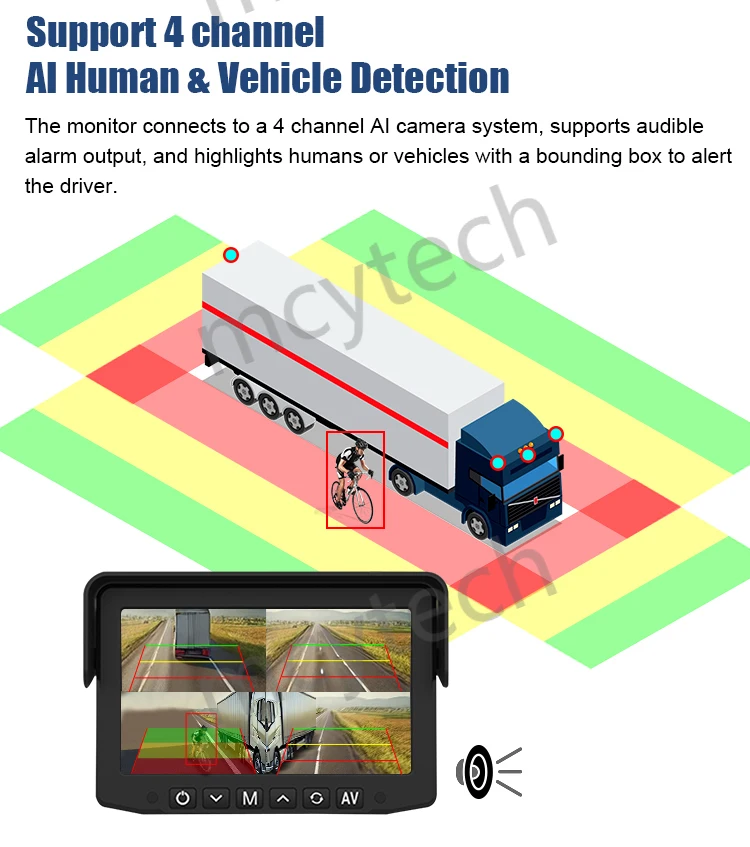

【People and Vehicle BSD Detection】 AI people and vehicle detection, visual and voice alerts to driver

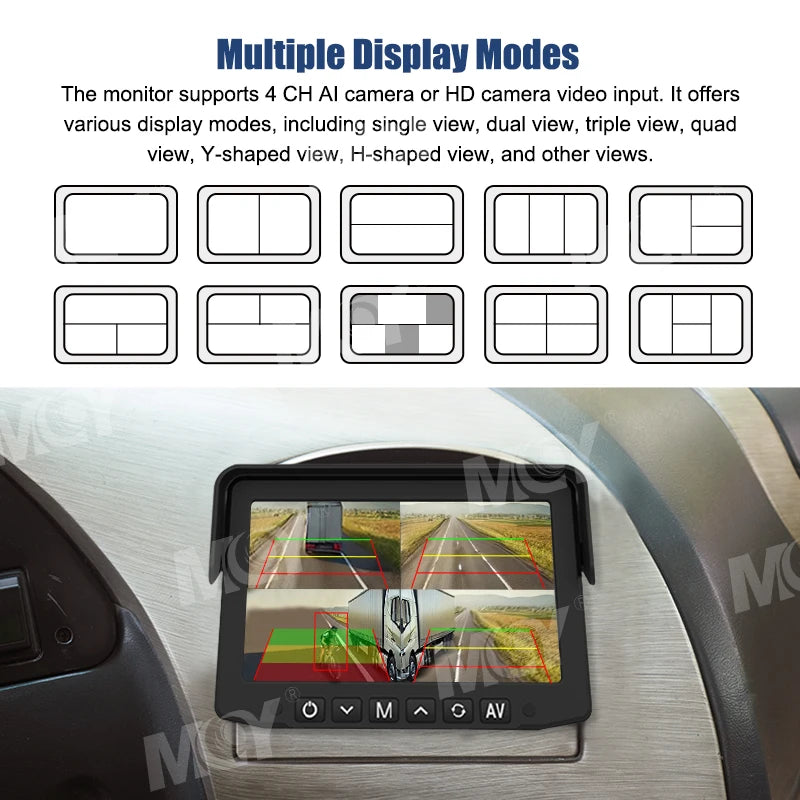

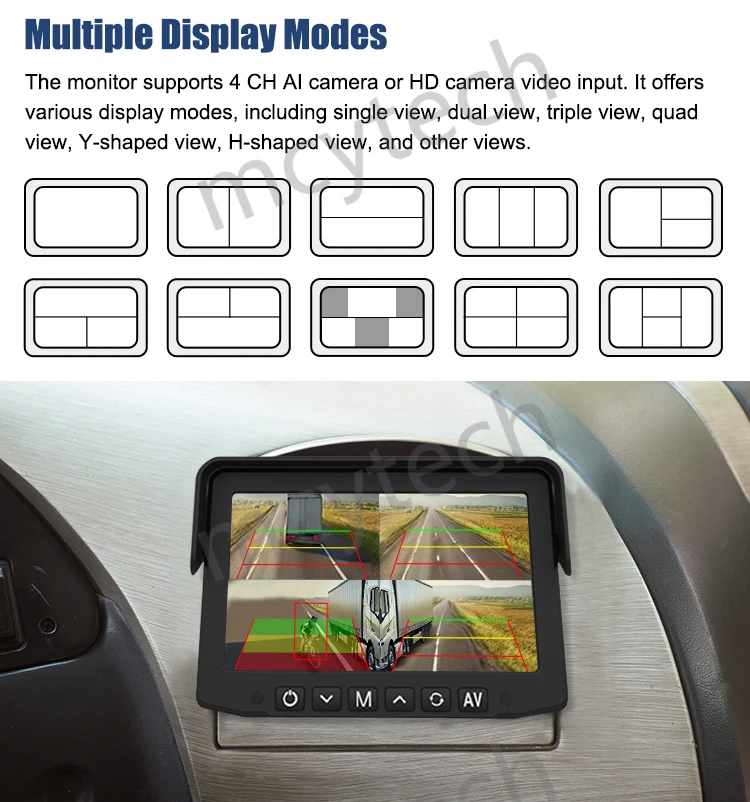

【10 Selectable Viewing Modes】 Single full view, dual split view, triple split view, quad split view.

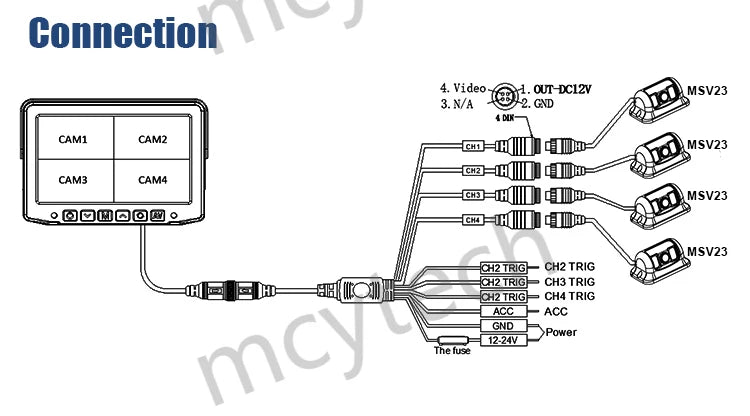

【4-Channel Video Input】 4 x 4 pin aviation male connector (M12), AHD/CVBS video input. Supports automatic image switching via trigger lines (e.g., when reversing or using turn signals).

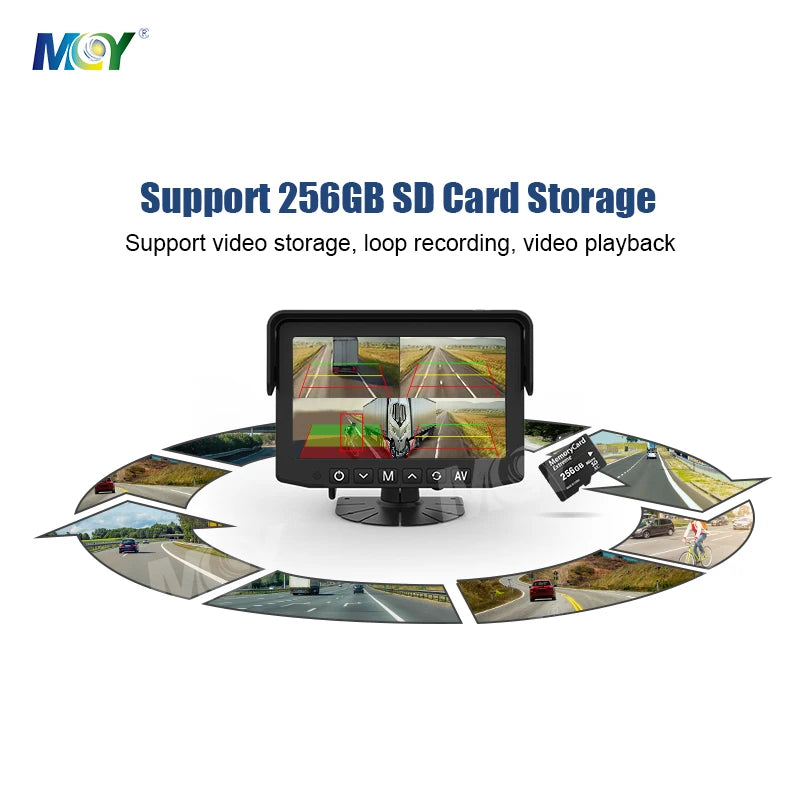

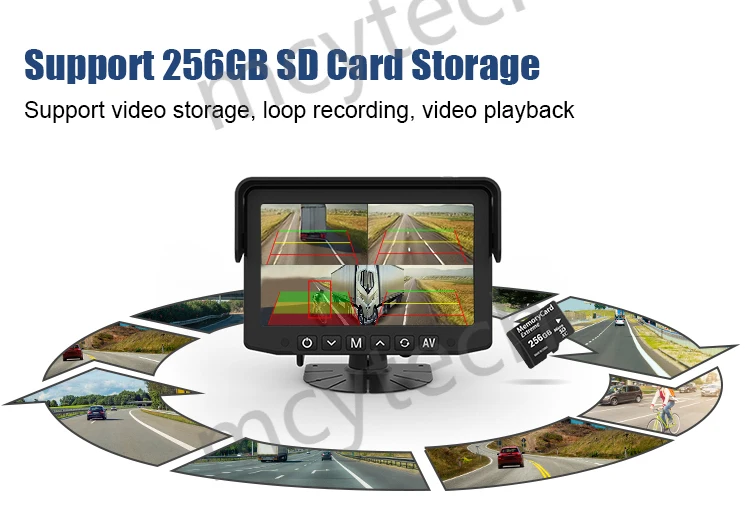

【SD Card Video Storage】 Support up to 256GB SD card for video recording, loop recording and video replay. East save and review footage directly on the monitor.
【Easy to Use】 Adjustable brightness, contrast, and color settings for optimal viewing. Includes an IR remote controller for an easy operation and sunshade for anti-glare.
【Wide Voltage Compatibility】 Works with 12V-32V systems, making it suitable for cars, buses, coaches, trucks, RVs, and more.
【After-Sales Support】 We provide 12-month warranty and life-time technical support. If you have any questions, feel free to message MCY for prompt assistance.
【10 Selectable Viewing Modes】 Single full view, dual split view, triple split view, quad split view.
【4-Channel Video Input】 4 x 4 pin aviation male connector (M12), AHD/CVBS video input. Supports automatic image switching via trigger lines (e.g., when reversing or using turn signals).
【SD Card Video Storage】 Support up to 256GB SD card for video recording, loop recording and video replay. East save and review footage directly on the monitor.
【Easy to Use】 Adjustable brightness, contrast, and color settings for optimal viewing. Includes an IR remote controller for an easy operation and sunshade for anti-glare.
【Wide Voltage Compatibility】 Works with 12V-32V systems, making it suitable for cars, buses, coaches, trucks, RVs, and more.
【After-Sales Support】 We provide 12-month warranty and life-time technical support. If you have any questions, feel free to message MCY for prompt assistance.
【Package List】 7 inch monitor x 1, AI camera x 4, 10 m video cable x 4, IR remote controller x 1, sunshade x 1, U bracket or Fan bracket x 1, user manual x 1
|
7 Inch 4 Channel Quad Monitor
|
|
|
|
Screen Size
|
7 inch
|
|
|
Model
|
TF78-04AHDQ-AIUS
|
|
|
Resolution
|
1024 x 600
|
|
|
Brightness
|
400cd/㎡
|
|
|
Contrast
|
500(Typ.)
|
|
|
TV System
|
PAL& NTSC
|
|
|
Power
|
Max 6W
|
|
|
Power supply
|
12-32 V
|
|
|

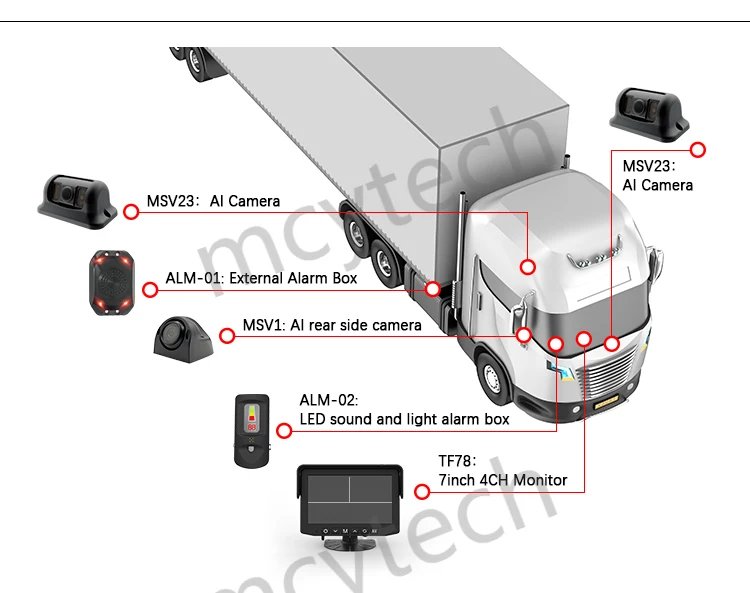

Front / Side / Rear View AI Camera
|
|
|
|
Model
|
MSV23-10PM-20
|
|
|
TV System
|
PAL/NTSC(Optional)
|
|
|
Effective Pixel
|
1280 (H) x 720 (V)
|
|
|
Infrared Spectrum
|
N/A
|
|
|
Infrared LED
|
N/A
|
|
|
Video Output
|
1 Vp-p, 75Ωcomposite, AHD
|
|
|
Mirror
|
Optional
|
|
|
Lens
|
f2.0mm Megapixel
|
|
|
Power Supply
|
12V DC ±10%
|
|
|
Power Consumption
|
100mA(Max)
|
|
|
Dimensions (L x W x H)
|
105.05 x 49 x61.05mm
|
|
|
Weatherproof/Water Proof
|
IP69K
|
|
|
Operating Temperature
|
-30°C to +70°C
|
|
Company Introduction
YEAR ESTABLISHED
MCY Technology Limited, established in 2012, is a high-tech enterprise devoted to providing professional and innovative Vehicle Surveillance Solutions for global customers.
MAIN PRODUCT SERIES
MCY offers a variety vehicle surveillance products, such as HD mobile camera, mobile monitor, mobile DVR, dash camera, IP camera, 2.4GHZ wireless camera system, 12.3inch E-side mirror, BSD detection system, AI facial recognition system, 360 degree SVM system, driver status system (DSM), GPS fleet management system, etc.
MAIN MARKET
Mainly exported to the North America, Europe, Australia, Southeast Asia, Middle East and other countries and regions, widely used in public transport, logistic transport, engineering vehicle, agricultural vehicle...
PRODUCTION CAPACITY
MCY manufactures in 5 production lines, over 3,000sqm factory in Zhongshan, China, employing over 100 staff to maintain a monthly production capacity of over 30,000 pieces.
R&D CAPACITY
MCY has more than 20 engineers and technicians with over 10 years of professional vehicle surveillance development experience.
PRODUCTION CAPACITY
MCY manufactures in 5 production lines, over 3,000sqm factory in Zhongshan, China, employing over 100 staff to maintain a monthly production capacity of over 30,000 pieces.
R&D CAPACITY
MCY has more than 20 engineers and technicians with over 10 years of professional vehicle surveillance development experience.

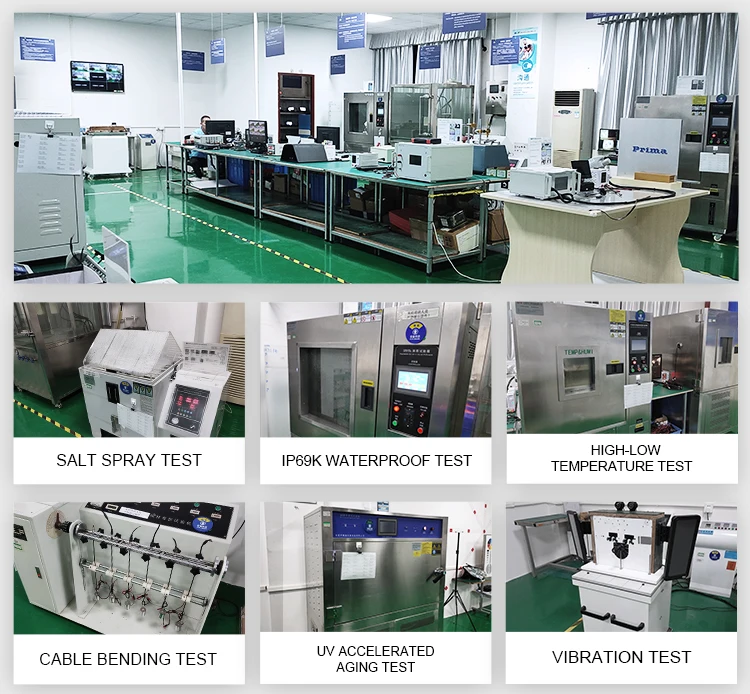

QUALITY CONTROL
All new products request a series of reliable performance tests from raw material to finished product before mass production, such as Salt Spray Test, Cable Bending Test, ESD Test, High/low Temperature Test, Voltage Withstand Test, Vandalproof Test, Wire and Cable Combustion Test, UV Accelerated Aging Test, Vibration Test, Abrasion Test, IP67/IP68/IP69K Waterproof Test, and etc.
CERTIFICATIONS
MCY has passed IATF16949:2016 quality management system. Design patents of camera, monitor, DVR have been obtained and most of products has certified with CE, UKCA, FCC, E-mark, R118, R46, R10, CE-RED, RoHS, IP69K certificate for compliance with international standards. Our mission is to provide our customers with HIGHEST QUALITY commercial vehicle monitoring solutions at a COMPETITIVE PRICE.
EXHIBITIONS
MCY attends many trade shows for commercial vehicle to exhibit our products and services all round the world every year, such as CES, AUTOMOTIVE WORLD JAPAN, CV SHOW, INTERSEC, IAA TRANSPORTATION, EURO BUS EXPO, SEMA, BUSWORLD EUROPE and etc.
SUCCESSFUL CASES
MCY has implemented many successful projects of the vehicle surveillance system in both China and the international market, such as the metro project, bus project, taxi project, heavy goods vehicle project, urban rail, and others.
If you are looking for any vehicle surveillance projects, please SEND INQUIRY to MCY. We can provide tailored solutions to meet your specific requirements.
If you are looking for any vehicle surveillance projects, please SEND INQUIRY to MCY. We can provide tailored solutions to meet your specific requirements.
