4CH 1080P Car DVR Dual SD Card Recorder 512GB Max 30 Days Recording Dvr MDVR Kit System for Truck Bus Van
4CH Support Double C
$403,99
Precio de oferta
$403,99
Precio habitual
Ir directamente a la información del producto
4CH 1080P Car DVR Dual SD Card Recorder 512GB Max 30 Days Recording Dvr MDVR Kit System for Truck Bus Van
$403,99
Precio de oferta
$403,99
Precio habitual
Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 18711161063 or maoyishunda@gmail.com

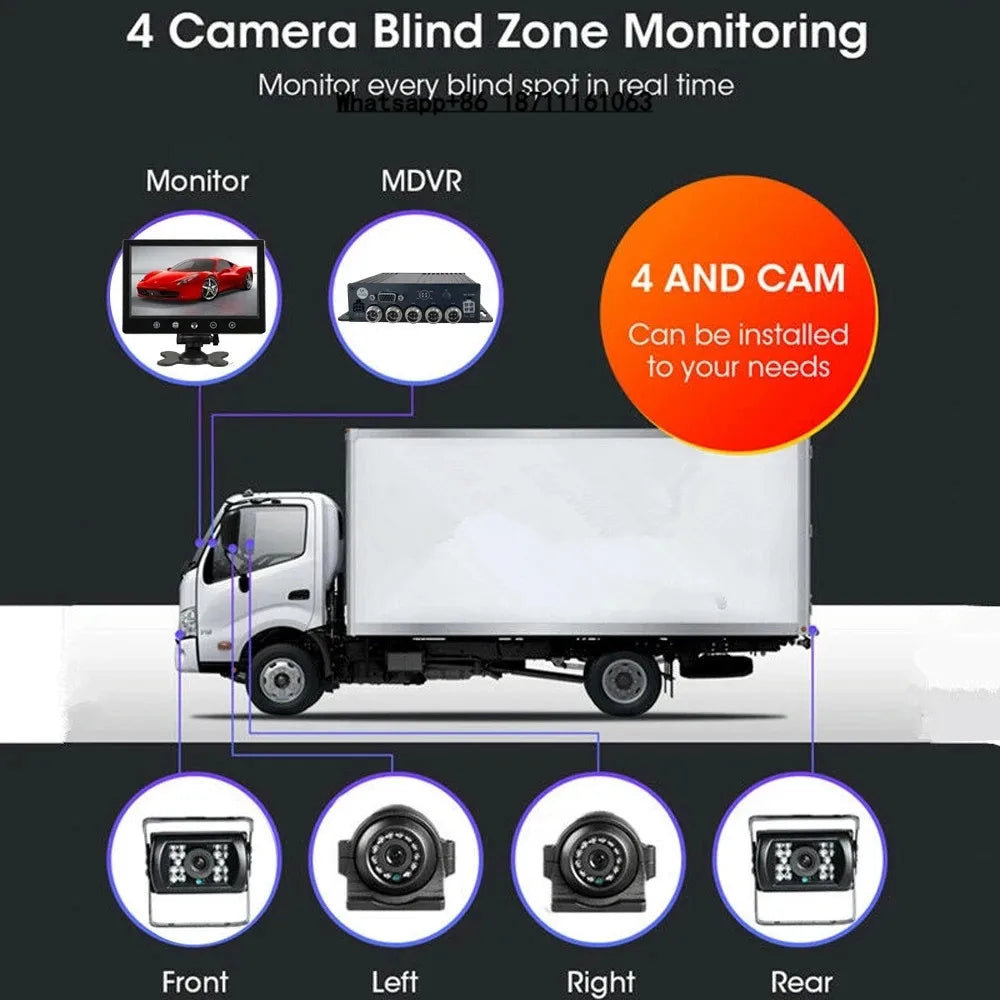

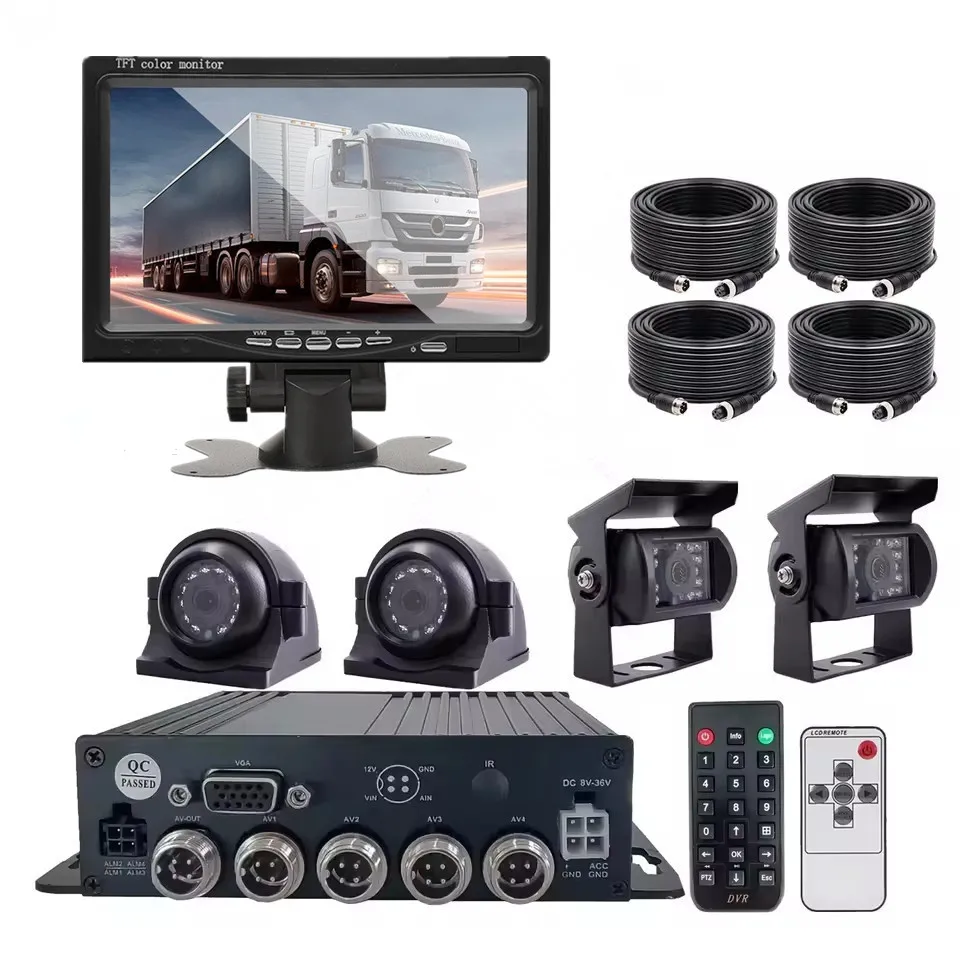

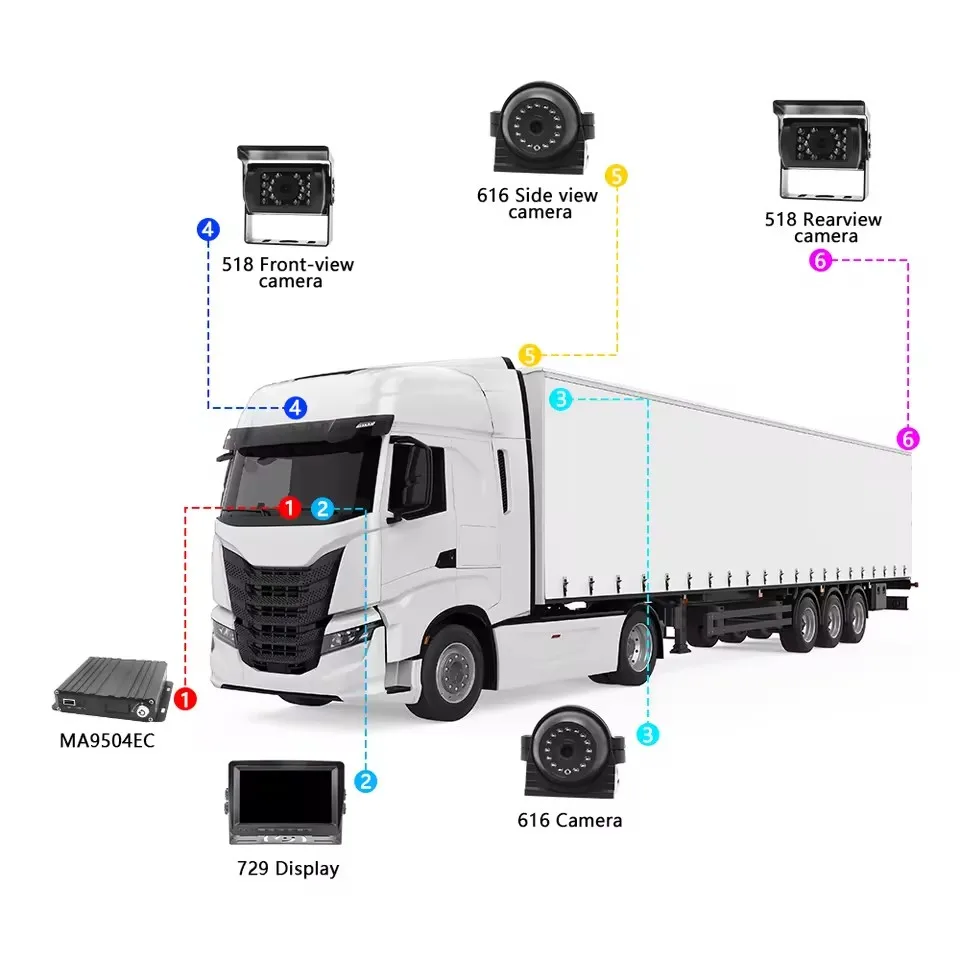

4CH 1080P Car DVR Dual SD Card Recorder 512GB Max 30 Days Recording Dvr MDVR Kit Camera System for Truck Bus Van

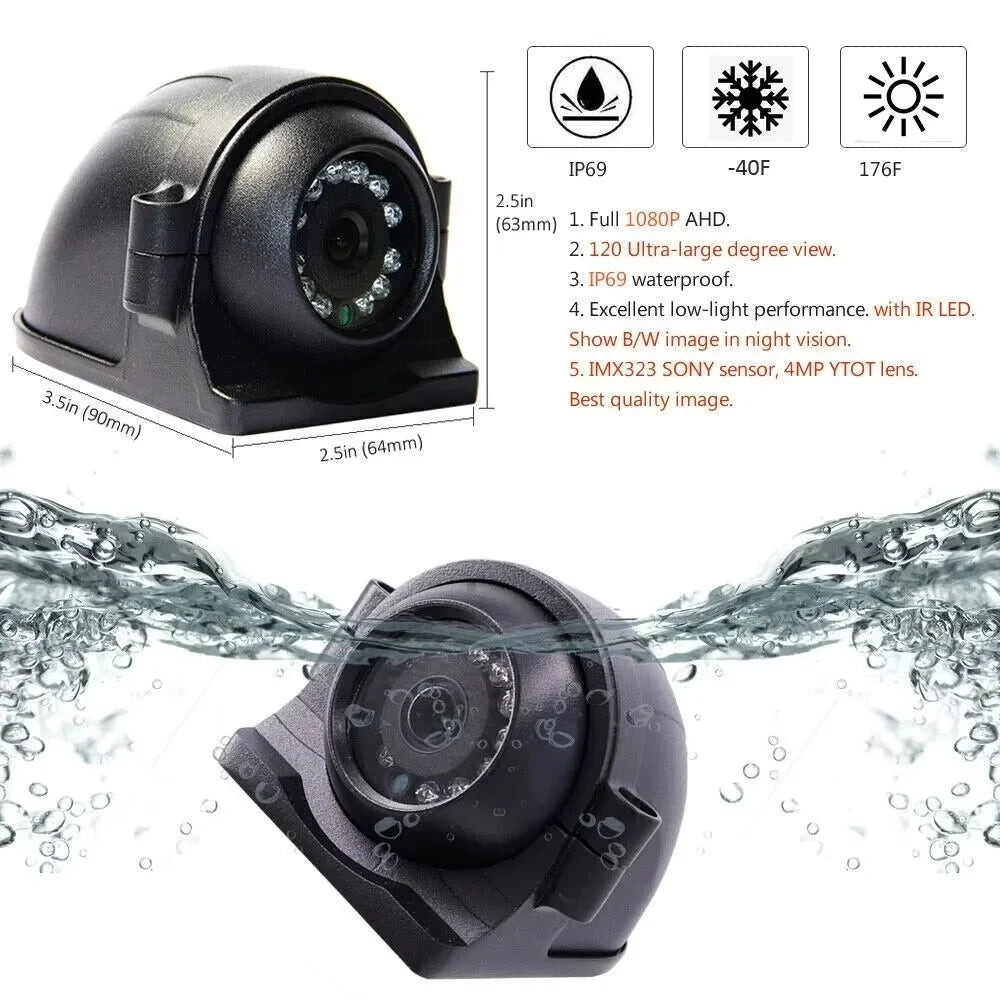

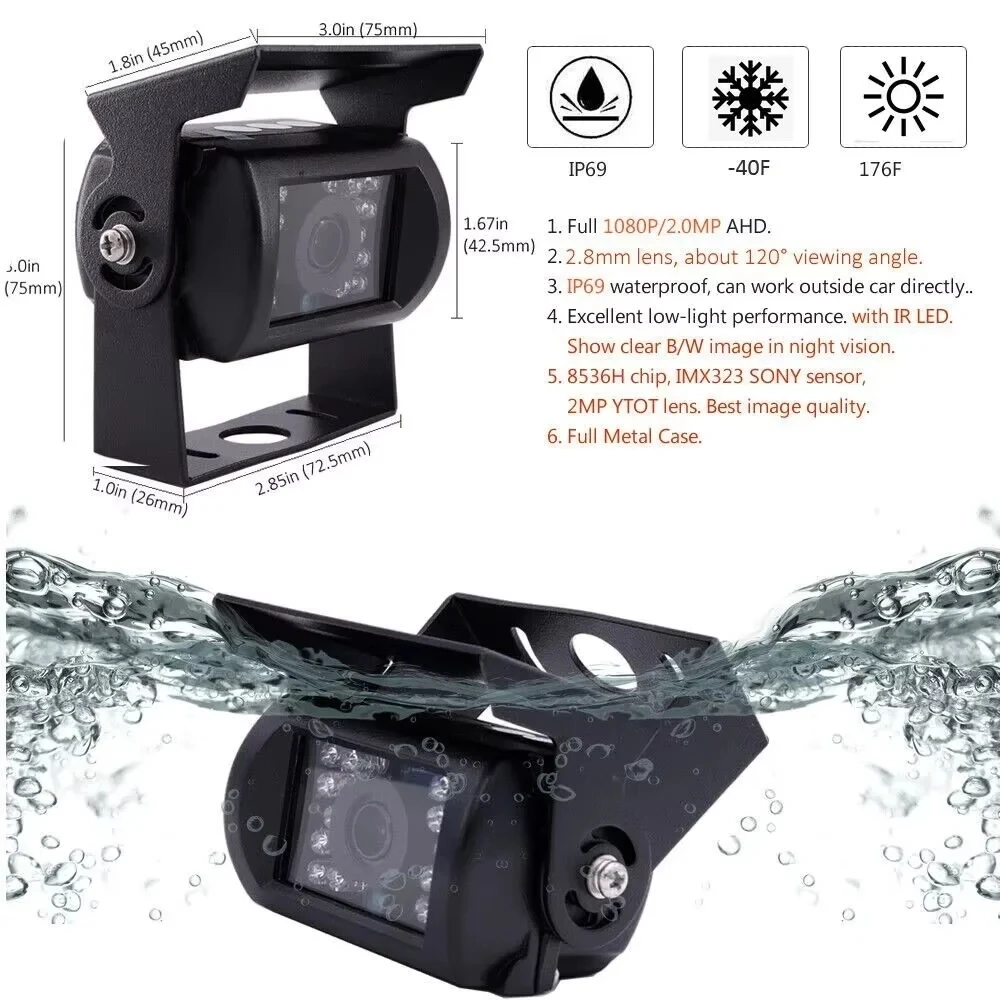

【H.264 Compression】Save a half of storage compared with H.264 Compression coding. 【EASY WIRING】: PLUG AND PALY. Wiring via 4 pin connector, it is more tight. 【PLAYBACK】Support playback videos on mdvr. We also provide a PC software, which palyback videos on PC, it can playback all 4 channels video at same time on this pc software. 【LOOP RECORD】: 4 Channel 1080P (1080N/720P /960H/D1/CIF for selection) HD real time recording, loop recording, Supports 1 piece memory card. Max.256GB x 1. (This kit does not include the card)【Backup Videos】supports to backup videos via USB slot. It can select AVI type to backup directly. 【PLAYBACK】Support video searching function so that we can easily get files of a certain period. Then can playback videos on mdvr directly. 【EXCELLENT CAMERA】: IP68 Rate waterproof, can work in outside directly. 18 pieces IR LED for night vision. Full metal case material, Real 2.0MP 1080P AHD resoluiton. IMX323 Sensor + WDR board. Excellent image quality in both day and night.【MIRROR IMAGE】It can mirror image via OSD menu operation, it can set any channel's image Horizonal Filp or Vertical Filp 【DELAY RECORDING】: Records footage while vehicle is off – up to 24 hours (draws power from vehicle’s battery).【4-CH ALARM INPUT】: It supports 4-CH alarm inputs, the screen will show full screen of one channel automatically when recieve the trigger signal. Manually create alarms so that associated footage is overwrite protected. Cameras & Monitor Features: Infrared Clear Day Night Vision: Featuring 2.8mm LEDs with IR-CUT function, 120° viewing angle, 50ft Night Vision range. The camera's infrared mode is automatically activated in low lighting conditions. It can clearly monitor everything even at night. IP69 Waterproof Camera:(Front Indoor Camera is not waterproof one) The AHD cameras are rated as dust tight and waterproof and cover with durable housing. Not afraid to brave the snow, rain, or heat. IP68 Rate Waterproof. Thecameras' operating temperature can be ranged from -40°F to 122°F (-40°C to 50°C). CAMERA Sensor: With brand IMX323 sensor, and 6-layer YTOT brand HD lens. The camera gets the best quality 1080P video. Good quality chip that have better WDR function. it can get clear image at any illumination. DELAY POWER OFF/ RECORD: Connect the YELLOW power wire to ACC of vehicle. It can setup delay power off and delay record on MDVR. Records footage while vehicle is off– up to 24 hours (draws power from vehicle’s battery). PLUG AND PLAY Connection: Connect the car cameas with mdvr via 4-pin connector cables. Power the MDVR via the car battery. Connect 9" monitor with the MDVR via VGA connector. Power the monitor via the 12V-24VDC output cable of MDVR. The stable and stream video will show up on the monitor. 1080P 4-CH Moible DVR Camera System All-In-One Surveillance System Included: 1 x 4CH H.2641080P Mobile DVR 4 x 1080P AHD Cameras(2x Front/Side +2x Rear) 3 x 16.5FT 4 pin cables 1 x 49FT 4 pin cable 1 x 10.1 inches IPS Screen Monitor 1 x Remote For MDVR 2 x Keys For MDVR 1 x Power Cable For MDVR 1 x Remote For Monitor 1 x Power Harness For Monitor 1 x Bracket for monitor 1 x User Manual 1 x User Manual Note 1: memory card NOT Included.
Product Description
Specification
|
Operating System
|
Embedded Linux
|
|
Languages
|
Chinese/English
|
|
User Interface
|
Graphical menu interface, supports mouse operation
|
|
Password Security
|
Two-level management with user and administrator passwords
|
|
Video Standards
|
Video Standards
|
|
Compression Standards
|
H.264/H.265
|
|
Image Resolution
|
1080P/ 720P /960H/D1/CIF
|
|
Playback Quality
|
1080P / 720P / 960H / D1 / CIF
|
|
Decoding Capability
|
1 channel 1080P real-time
|
|
Recording Quality
|
Configurable from Level 1 to Level 6
|
|

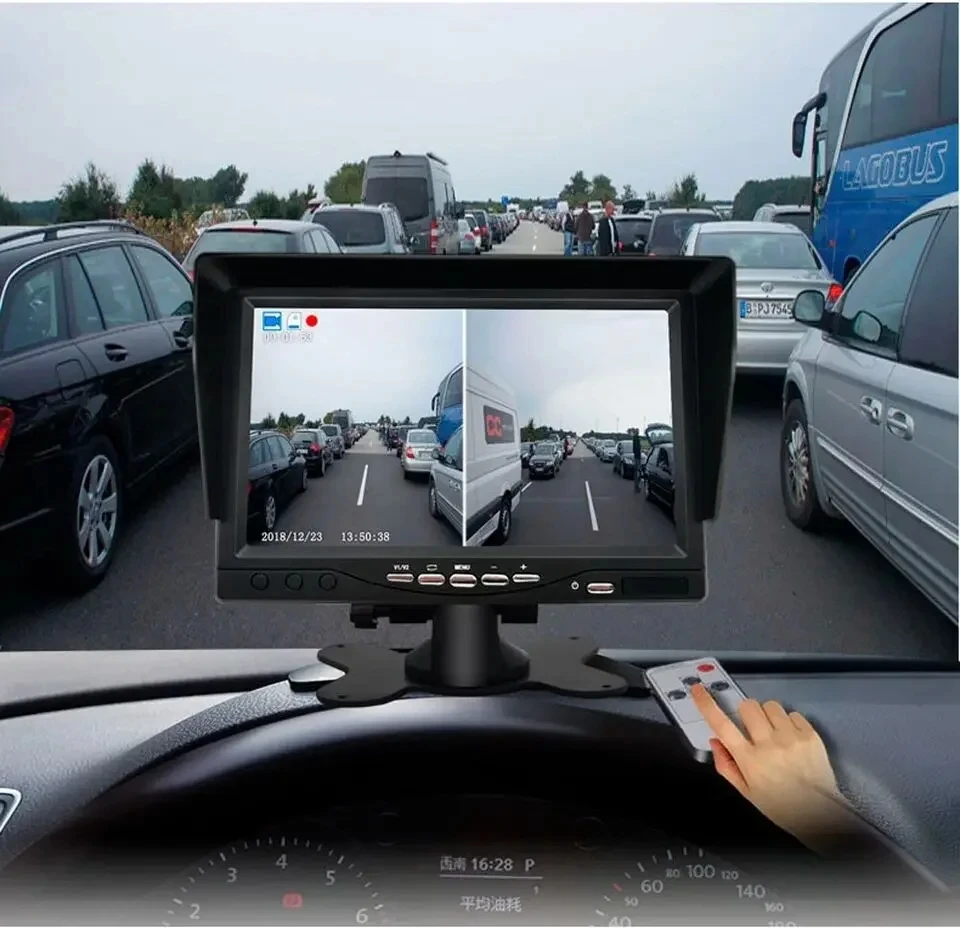

Screen Display
|
Supports 1, 2, T, H, and 4-screen display
|
|
Audio Compression
|
G.726/MG726/G.711
|
|
Audio Recording Mode
|
Synchronized audio and video recording
|
|
Recording Mode
|
Manual, Alarm
|
|
Video Bitrate
|
4096 Mbps at full frame rate; 6 quality levels available
|
|
Audio Bitrate
|
8 KB/s
|
|
Storage
|
SD card storage
|
|
Recording Search
|
Searchable by channel and recording type
|
|
Local Playback
|
File-based playback
|
|
Upgrade Mode
|
Manual upgrade, automatic upgrade
|
|
Upgrade Method
|
USB interface
|
|

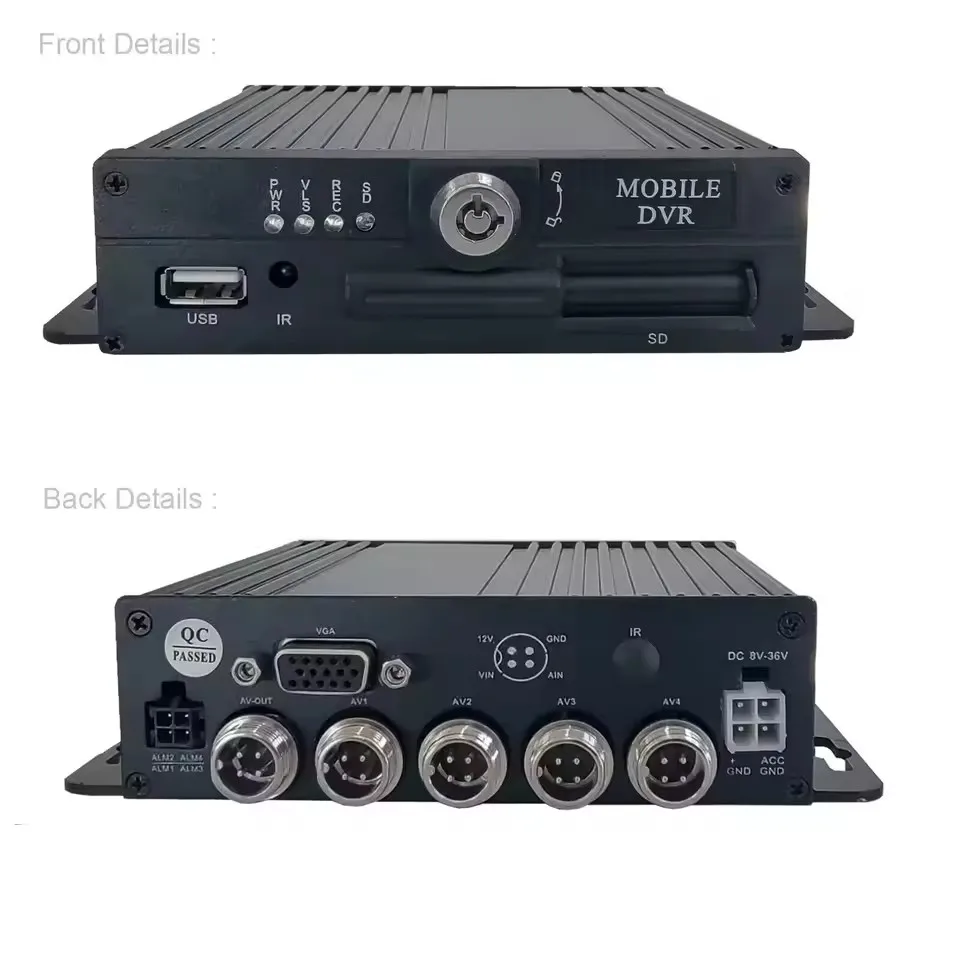

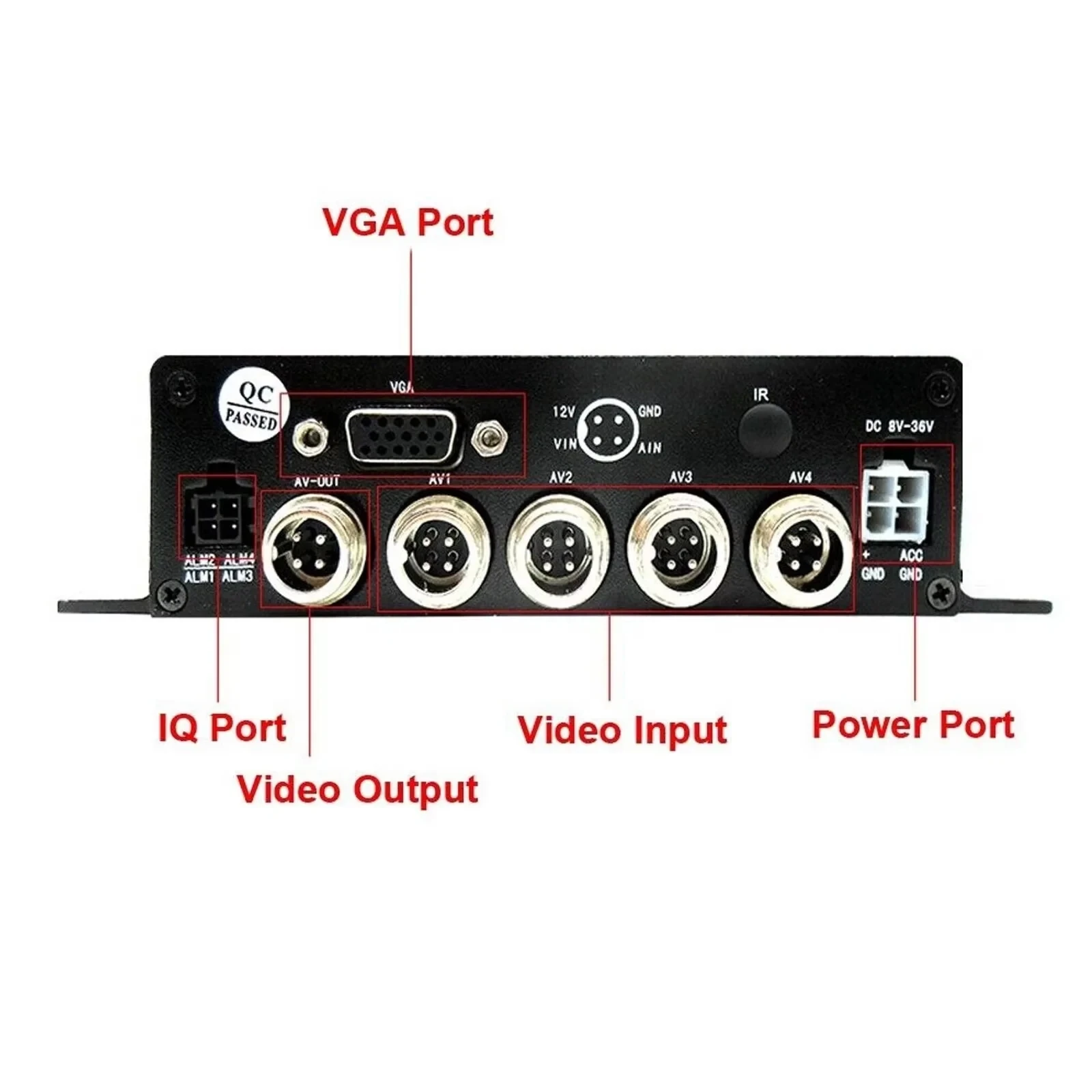

Audio/Video Input
|
4 aviation connector ports
|
|
Audio/Video Output
|
1 VGA video output or 1 aviation connector audio/video output
|
|
Alarm Input
|
4 digital inputs (Positive/negative trigger configurable)
|
|
SD Card
|
1 SDXC high-speed card (supports up to 256GB)
|
|
USB Port
|
1 USB 2.0 (supports full mouse operation, USB latency self-test)
|
|
Ignition Input
|
1 ACC signal
|
|
LED Indicators
|
PWR/RUN
|
|
SD Card Lock
|
1
|
|
Debug Serial Port
|
1
|
|
Extended Features
|
GPS/BD
|
|
|
Supports antenna insertion/removal/short-circuit detection
|
|
Power Input
|
DC: 8V–36V
|
|
Power Consumption
|
Standby: 5.8mA; Maximum: 980mA
|
|
Operating Temperature
|
-20 to 70°C
|
|
Storage Capacity
|
H.265 1080P: 675MB/hour/channel
|
|
Dimensions
|
142 x 153 x 33 (mm)
|
Packing & Delivery
