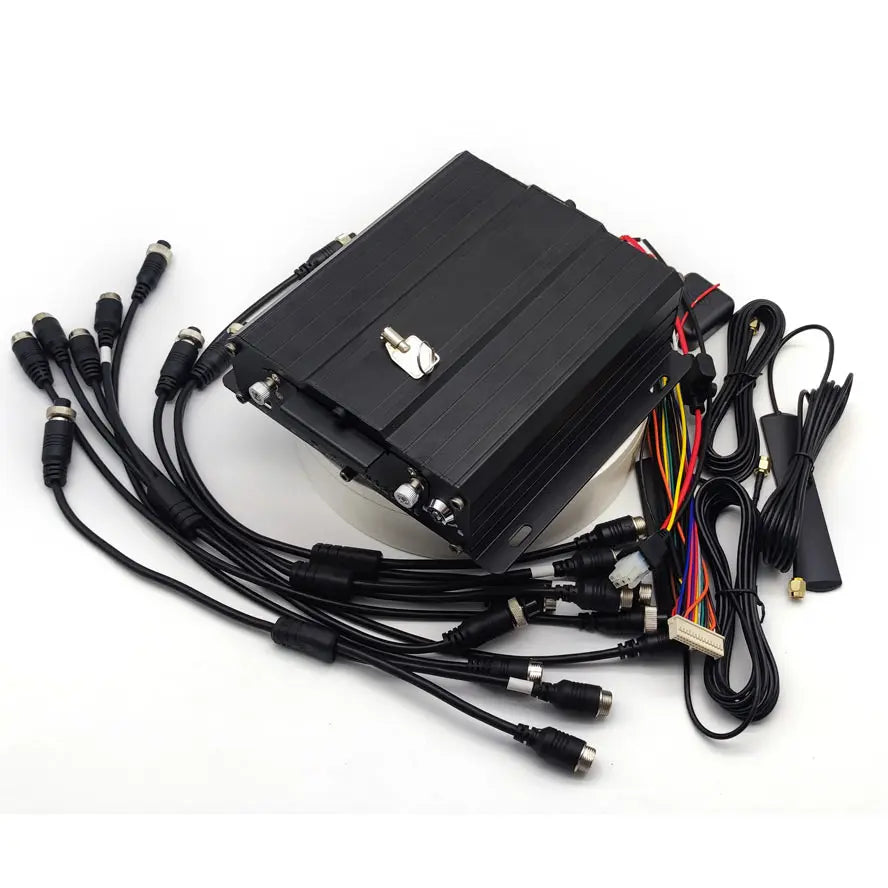

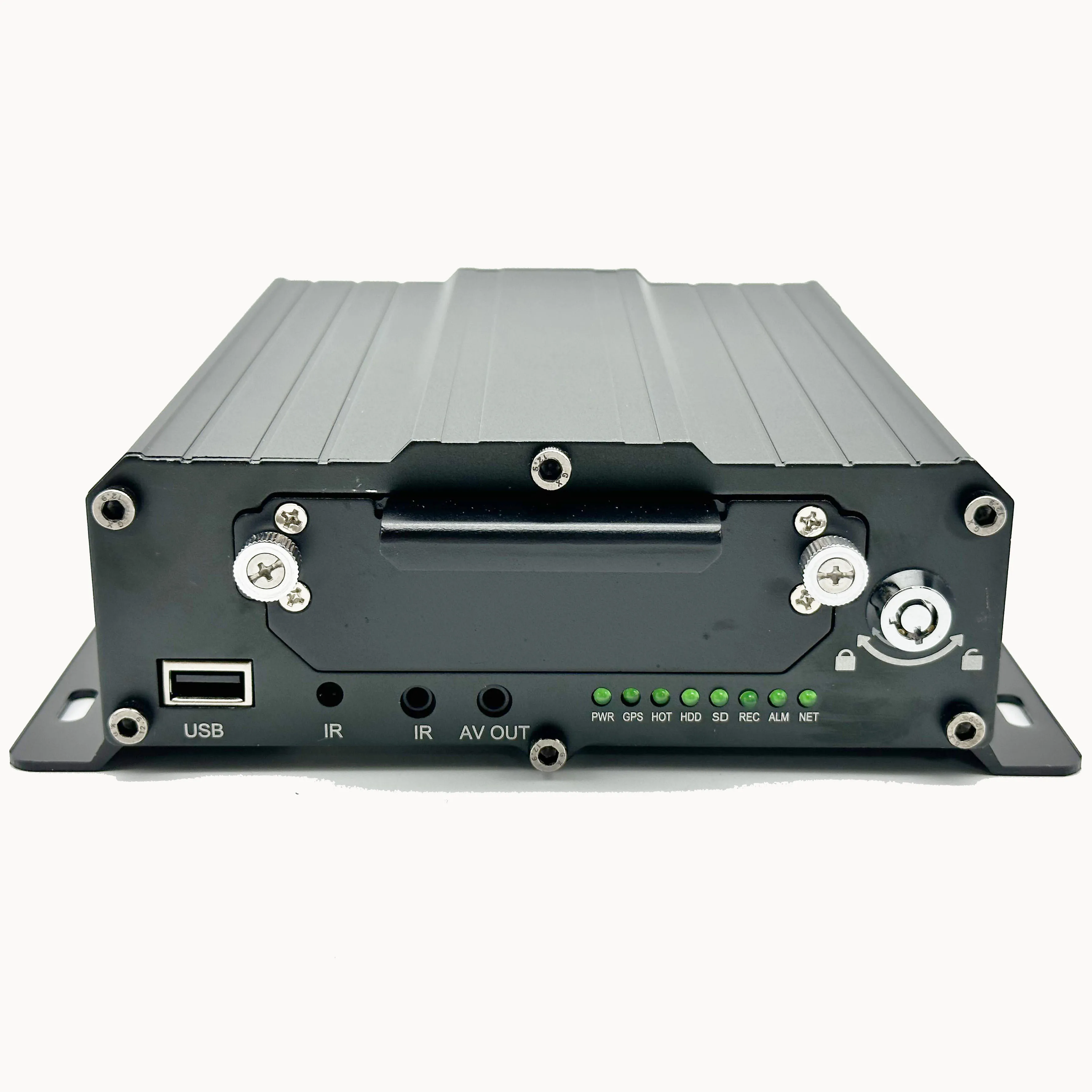

FL&OEM Buses Truck Van Trailer 8 Channels 1080P AI MDVR ADAS DMS HDD 4G Mobile DVR Video Recorder Fleet Management System
Option
$533,99
Precio de oferta
$533,99
Precio habitual
Ir directamente a la información del producto
FL&OEM Buses Truck Van Trailer 8 Channels 1080P AI MDVR ADAS DMS HDD 4G Mobile DVR Video Recorder Fleet Management System
$533,99
Precio de oferta
$533,99
Precio habitual
Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 18711161063 or maoyishunda@gmail.com
Details Images
|
Main processor
|
Hi3521D V100 chipset
|
High performance chipset
|
|
System
|
Language
|
Chinese, English, Russian (customerized)
|
|
|
Operating system
|
LINUX
|
|
|
Password security
|
User Password and Administrator Password
|
|
|
Operating interface
|
Graphical menu operation interface (OSD menu)
|
|
Display
|
Preview function
|
Single channel, 8 screen splicing preview, support manual/event trigger full screen display
function. |
|
|
System display
|
GPS information, alarm, car number, speed, date/time
|
|
Video
|
Video input
|
4 Channel or 8 channel video input, AV interface
|
|
|
Video output
|
2 CH composite video output, supports 1 channel full screen and 8 CH split
|
|
|
Video standard
|
PAL /NTSC
|
|
|
Video bit rate
|
Level 8 picture quality is optional, Level 1 the highest and Level 8 the lowest
|
|
|
Image compression
|
H264/H265
|
|
Audio
|
Audio input
|
4 CH audio inputs
|
|
|
Audio output
|
2 CH, front earphone oral, rear BNC head
|
|
|
Audio bit rate
|
8KB/s
|
|
|
Audio coding
|
G711A / G726
|
|
|
Recording mode
|
Simultaneous audio and video recording
|
|
Record
|
Video mode
|
Startup video/timing video/alarm video
|
|
|
Recording device
|
2.5-inch hard disk (Max. 4T) +SD (Max. 256G)
|
|
Display
|
Preview function
|
Single channel, 8 screen splicing preview, support manual/event trigger full screen display
function. |
|
|
Operating system display
|
GPS information, alarm, license plate number, speed, date/time
|
|
Alarm
|
Alarm input
|
8 CH IO alarm input, 1 AD input, pulse speed input; With alarm linkage function
|
|
|
Alarm Output
|
2 CH switch output, linkage sound and light alarm, oil cut-off power, etc
|
|
|
G-Sensor
|
Support built-in G-SENSOR acceleration sensor, alarm linkage trigger
|
|

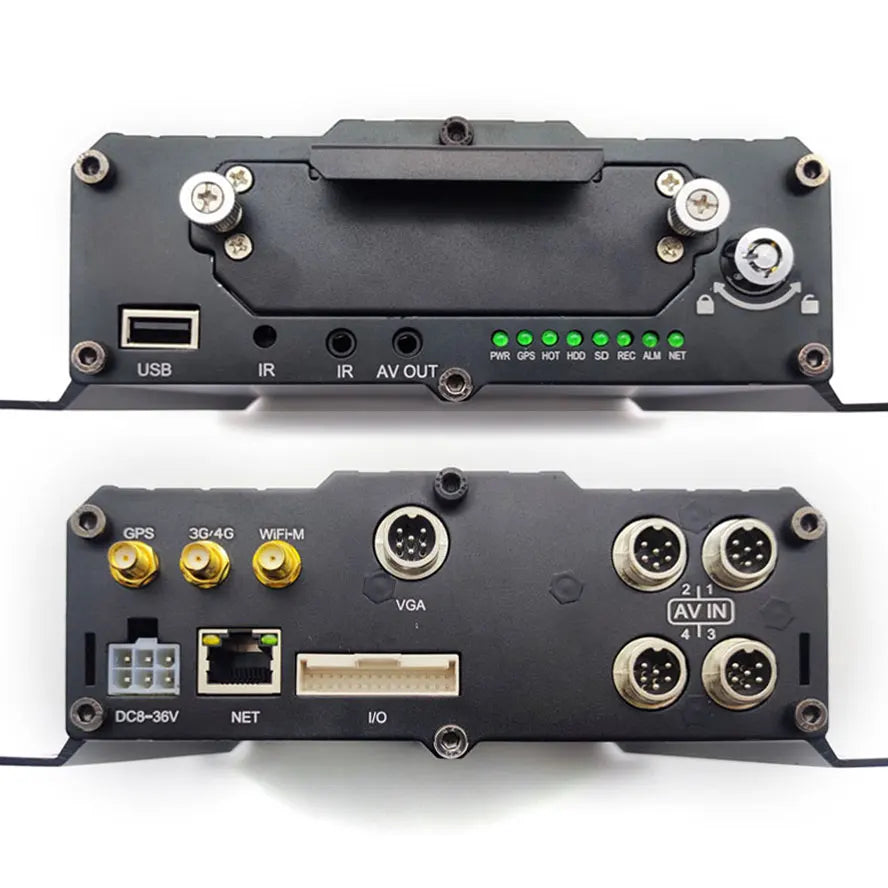

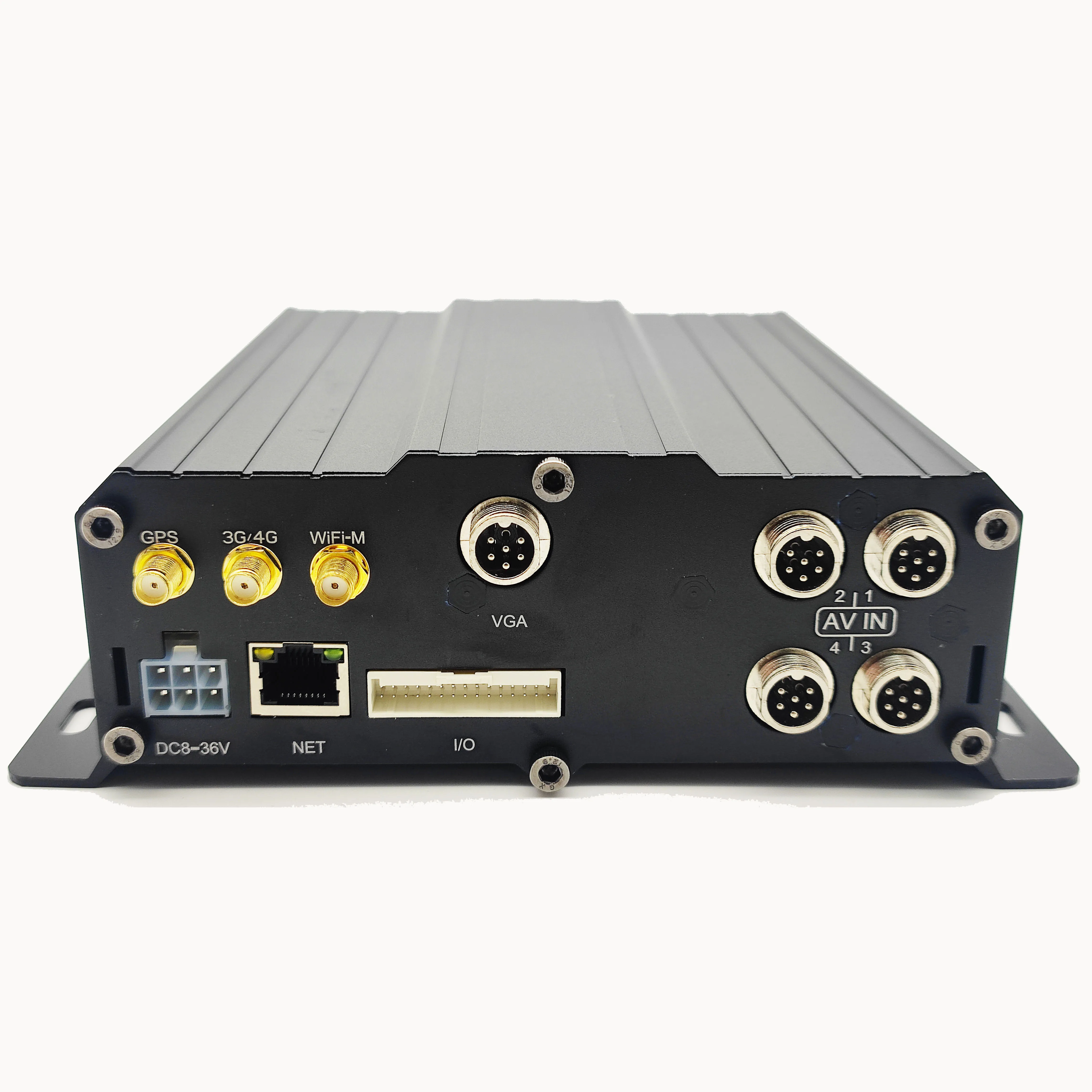

Port
|
RS232
|
2*RS232 expandable card reader, oil sensor, LED advertising screen, etc.
|
|
|
RS485
|
1*RS485 expandable head.
|
|
|
RJ45
|
1*RJ45
|
|
|
USB
|
1*USB
|
|
Module
|
3G/4G(Optional)
|
Built-in 3G/4G module
|
|
|
WIFI(Optional)
|
Built-in WIFI module
|
|
|
GPS(Optional)
|
Support Dual Module GPS/BD
|
|
Platform
|
Remote monitoring platform
|
Wireless network to achieve video preview, GPS upload, Upload alarm and central command, parameter configuration, etc
|
|
|
Video analysis software
|
Play back the video file on the PC, and at the same time analyze vehicle information.
|
|
|
|
|
|
Power
|
Power consumption
|
≤10W
|
|
|
Power input
|
DC +10V - +36V
|
|
|
output voltage
|
+12V@1A, +5V@1A
|
|
Positioning
|
GPS/ Beidou
|
Support built-in GPS/ Beidou module, geographic coordinates, speed and other coded streams can be written and uploaded wirelessly.
|
|
Working environment
|
Operating temperature
|
-20'C to +70"C
|
|
|
Humidity
|
20% to 80%
|
|
Net weight
|
Bare metal with hdd
|
2.15KG
|
|
Size
|
Machine
|
200mmx187mmx65mm
|

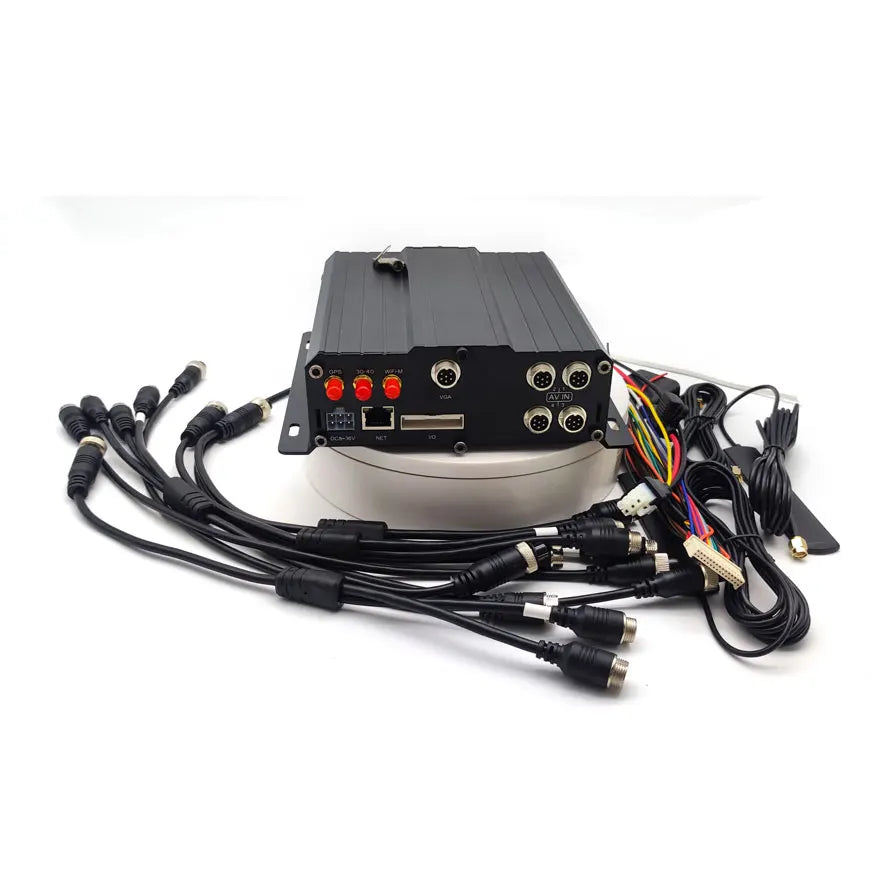

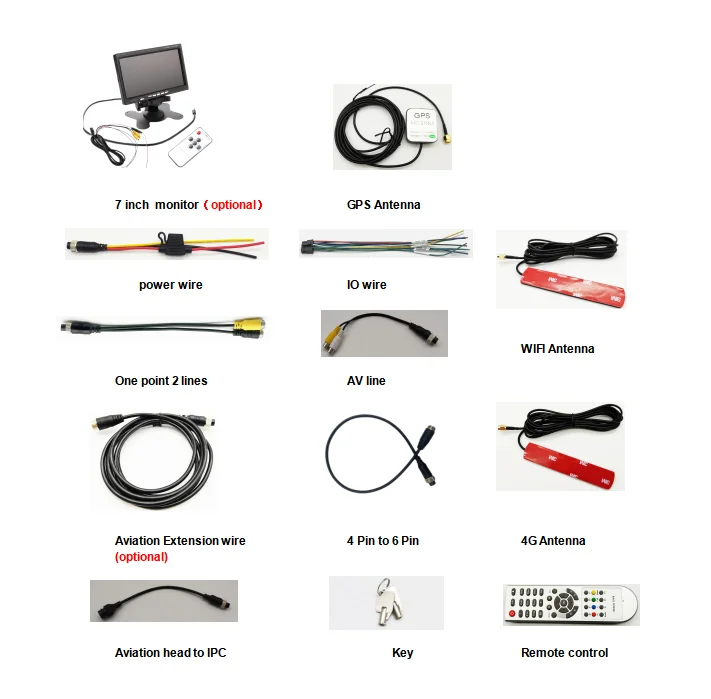

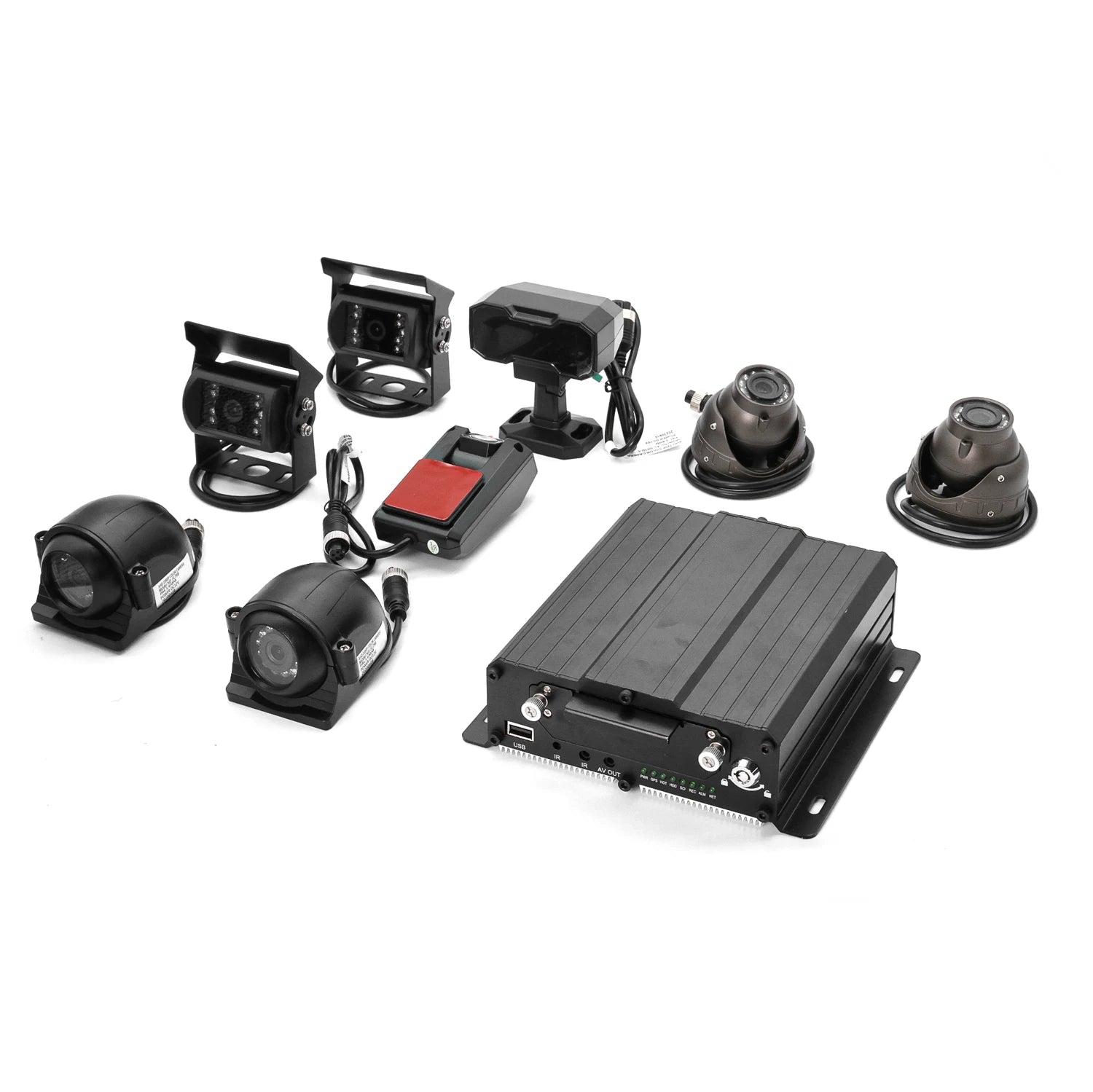

Accessory
Installation

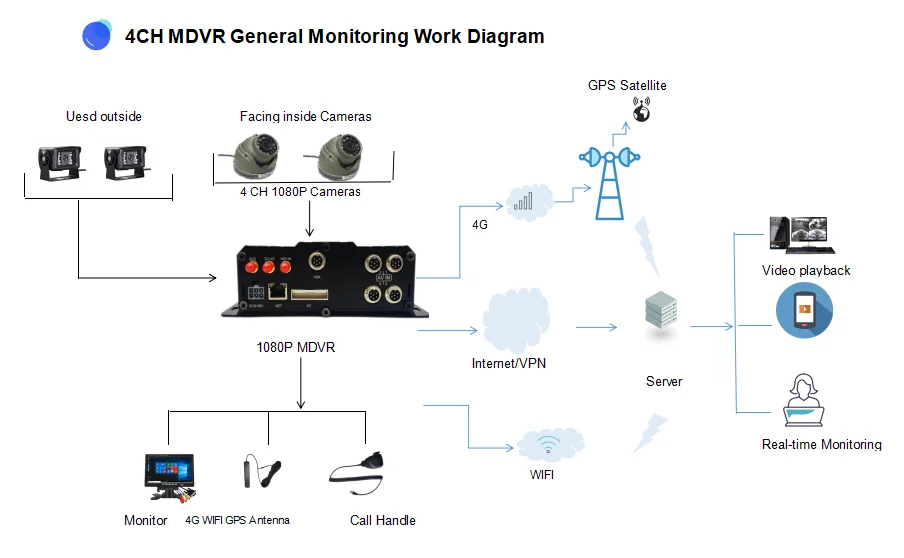

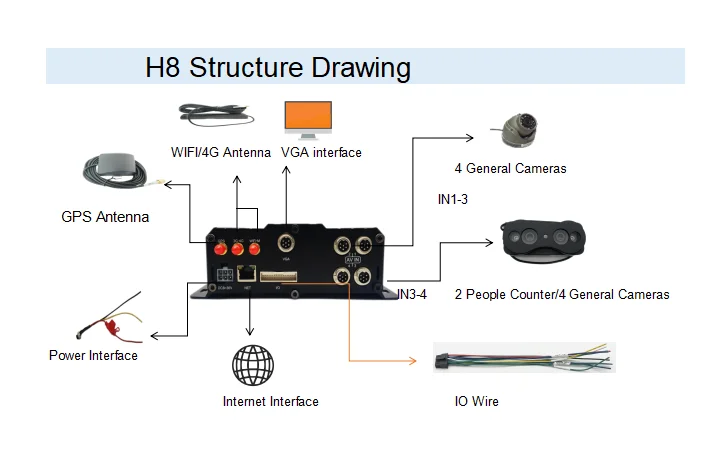

H8 4CH Work Diagram
This device support 4G WIFI GPS and function customization,support 1*4TBHDD+1* 256SD card， 4 CH/8 CH 1080P, mostly service for bus,taxi and trunk . Support real-time monitoring and tracking.

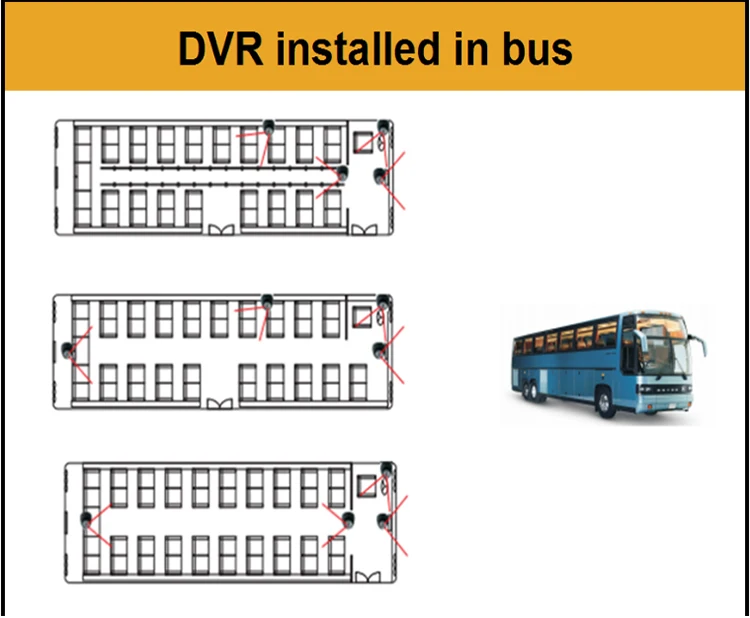

For bus
The orientation of cameras are optional according to your needs.

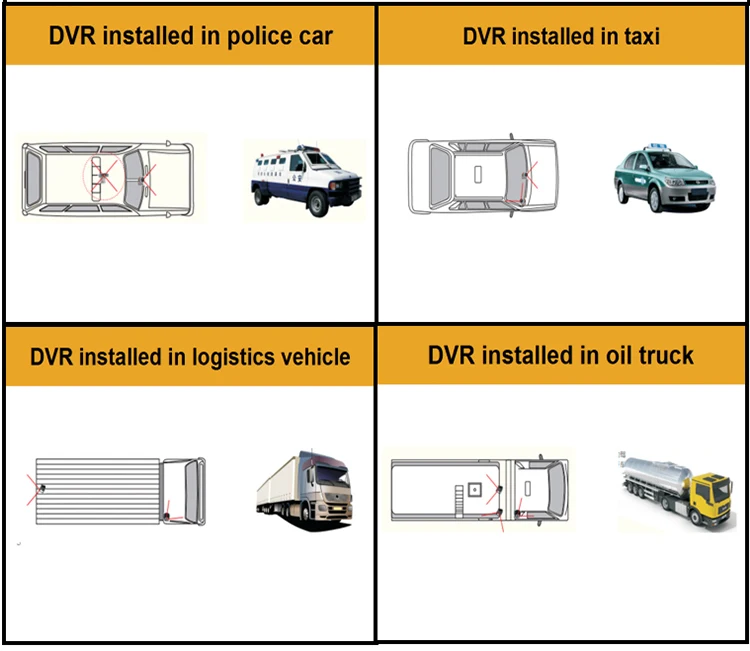

For others vehicles
Real-time transmit date to user

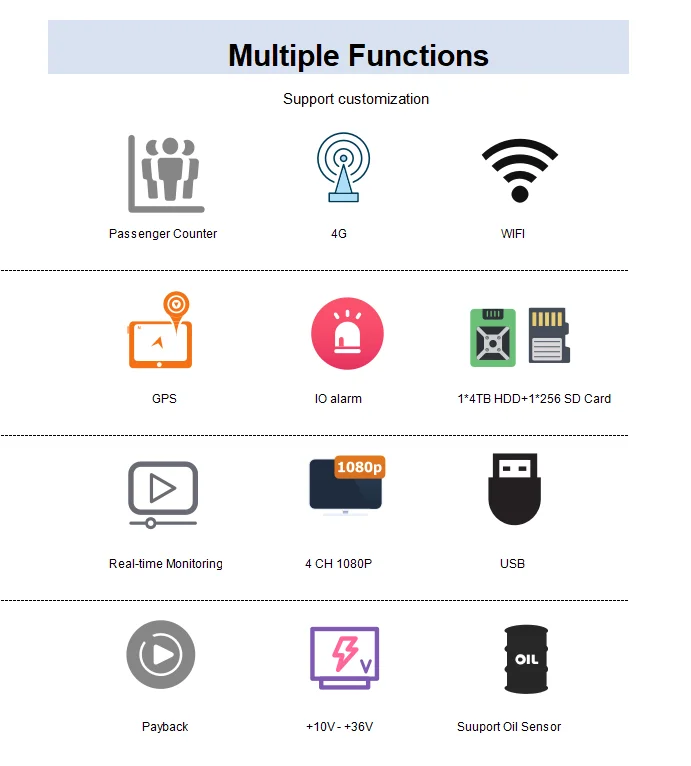

MDVR Function

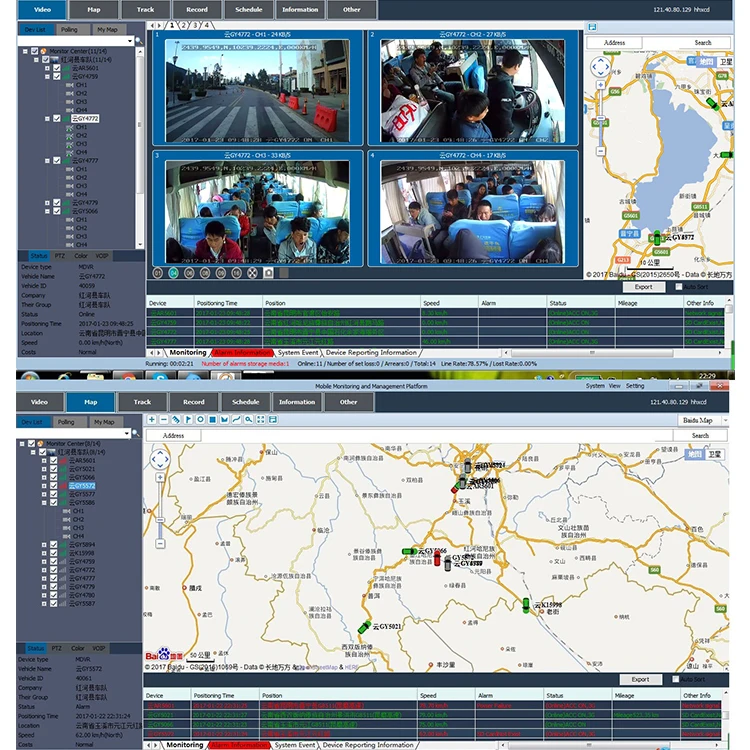

Vehicle remote management on PC/Mobile
Users can remotely manage and view all vehicles through the app in the mobile phone and windows .

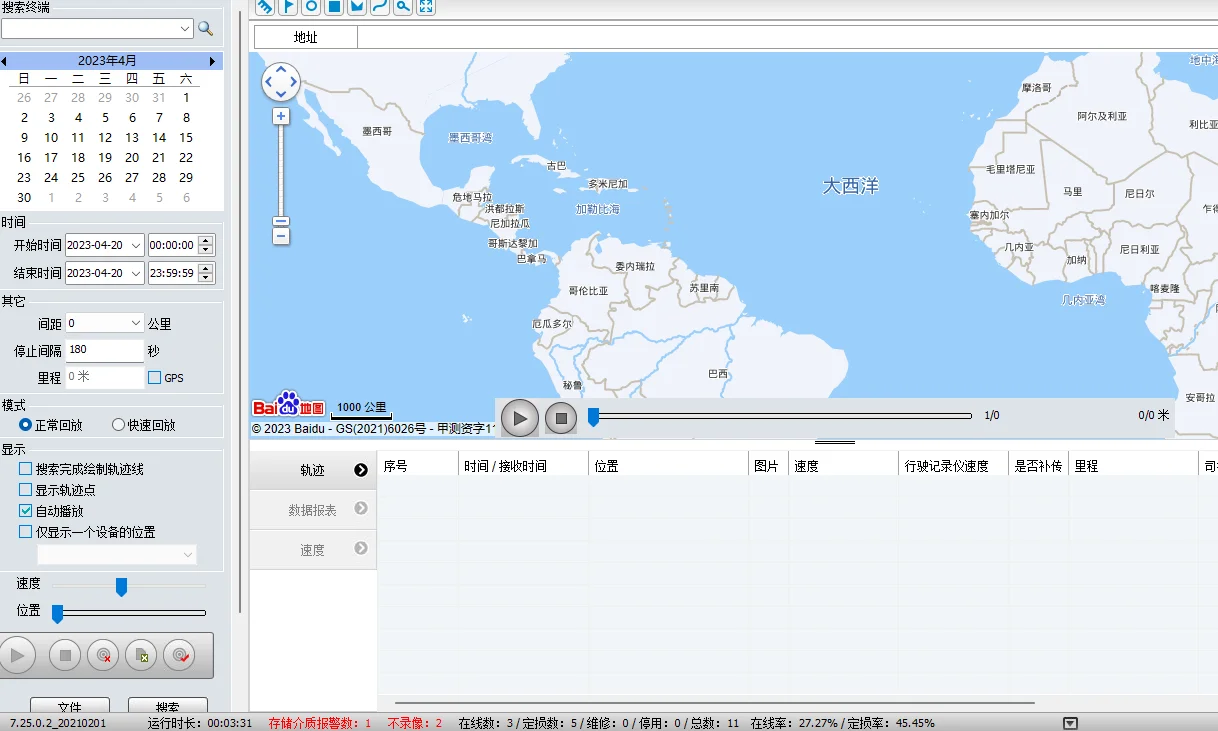

GPS Tacking
Through the app , the vehicles locations can be recorded , the user can choose the date to review and tracking the location.

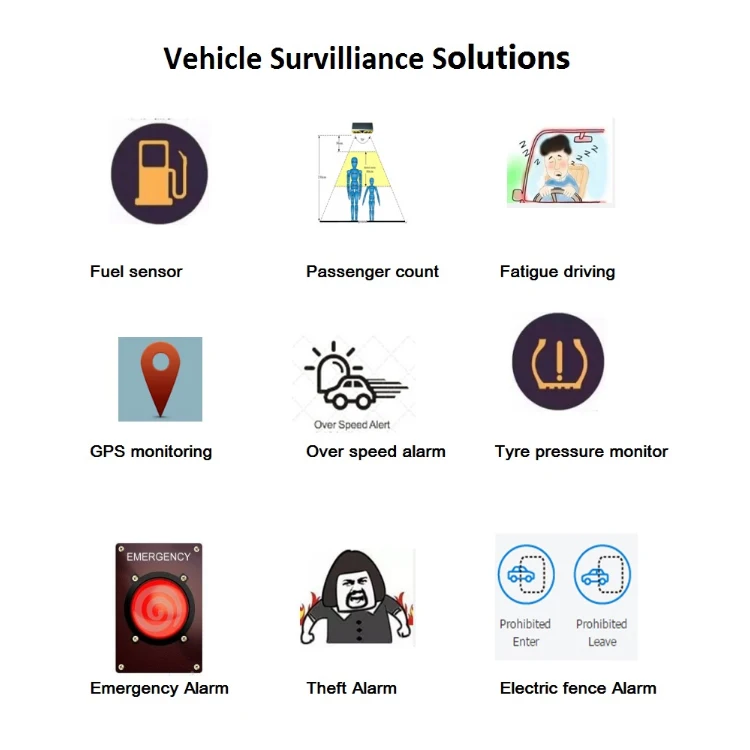

Support Vehicle Solution
Support extensible card reader, oil sensor, temperature and humidity sensor, LED advertising screen, etc.
